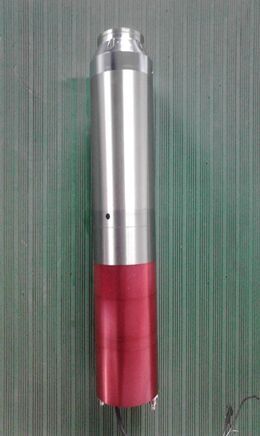

80-HNZ24Z2.2

cat: | updatetime:2015-08-19 16:11:26 | hits:0

Brand name: Haina



Spindle type: 80-HNZ24Z2.2

Function: used in cnc router and cnc wood engraving machine



Power:  2.2KW



Joint of Nose: ISO 20



Noise:66db



Voltage: 220v



Shocking:1.0μm



Current: 9A



Diameter:80mm



Length:233mm



Cooling:Grease



Speed:   24000rpm



Temperature control:22-25°C



Frenquency:  400Hz



Torque: 0.89N.m



Cooled: water cooled

bearings:71905*2  71904 *2
