HNZ-80D/1.5H

cat: | updatetime:2014-01-23 15:44:58 | hits:0

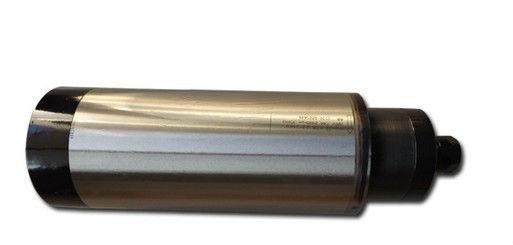

1.5kw Spindle Motor (Constant Power):

Brand name: Haina

Spindle type: HNZ-80D/1.5

Function: used in metal carving ,and engraving

Rev(r/min): 12000-24000

Power(kw): 1.5

Voltage(v): 220

Current(A): 7

Frequency(HZ): 400-800

Cool: cooled by water

Lubricate: grease

Bearing type:  2*7005CP4  2*7002CP4

Weight(kg): 8

Collet(mm): ER20

Diameter(mm): 80
